Magnesium phosphate is a white, crystalline inorganic compound composed of magnesium and phosphate ions, with the chemical formula Mg₃(PO₄)₂. It is a magnesium salt of phosphoric acid, and it exists in several forms, including tribasic, dibasic, and monobasic magnesium phosphates, depending on the ratio of magnesium to phosphate and the degree of protonation.
The tribasic form, Mg₃(PO₄)₂, is the most common and stable type. It is insoluble in water, but soluble in acids, and is found naturally in some minerals such as farringtonite. Magnesium phosphate is often used in nutritional supplements, toothpastes, fertilizers, and occasionally as a food additive to provide magnesium and phosphorus — both essential nutrients for humans and plants.
Structure
The structure of magnesium phosphate consists of:
- Magnesium ions (Mg²⁺) — positively charged cations.
- Phosphate ions (PO₄³⁻) — negatively charged polyatomic anions.

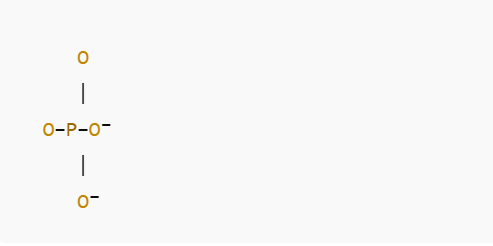

Each phosphate ion contains one phosphorus (P) atom tetrahedrally coordinated to four oxygen (O) atoms:
Each magnesium ion (Mg²⁺) is electrostatically bonded to the oxygen atoms of surrounding phosphate ions. The ionic bonds form a three-dimensional lattice structure, giving the compound its crystalline solid form.
In the solid state:
- Each phosphate group is connected to multiple magnesium ions through oxygen bridges.
- The structure is ionic with some degree of covalent character within the phosphate ion.
This stable crystalline arrangement contributes to its low solubility in water and high thermal stability.
Physical Properties
- Appearance:
White, odorless, crystalline powder or solid. - Molecular Weight:
262.86 g/mol - Density:
About 2.13 g/cm³ - Melting Point:
> 1,180 °C (it decomposes before melting completely). - Solubility:
- Insoluble in water, which makes it stable in aqueous environments.
- Soluble in acids such as hydrochloric or nitric acid, forming magnesium and phosphate salts.
- Taste and Odor:
Tasteless and odorless. - Crystal Structure:
Usually forms orthorhombic crystals in its anhydrous form. - Hydrated Forms:
Magnesium phosphate can exist in hydrated states, such as Mg₃(PO₄)₂·8H₂O, which are more common in biological and laboratory conditions.
Chemical Properties
Reaction with Acids:
Magnesium phosphate reacts readily with acids to form soluble magnesium salts and phosphoric acid:
Mg3(PO4)2+6HCl→3MgCl2+2H3PO4.
This reaction demonstrates its basic nature as a metal salt of a weak acid.
Reaction with Bases:
Generally does not react with bases, since it is already a salt of a weak acid and a moderately strong base.
Thermal Decomposition:
On strong heating, magnesium phosphate decomposes into magnesium pyrophosphate (Mg₂P₂O₇) and releases phosphorus oxides:
2Mg3(PO4)2→3Mg2P2O7.
This decomposition occurs at very high temperatures.
Reaction with Ammonium Salts:
When treated with ammonium salts, magnesium phosphate can produce ammonium phosphate and magnesium salts: Mg3(PO4)2+6NH4Cl→3MgCl2+2(NH4)3PO4
Buffering Action:
Magnesium phosphate can help maintain pH balance in some biological and chemical systems due to the equilibrium between phosphate ions and hydrogen phosphate ions.
Preparation
Magnesium phosphate can be prepared by several methods, both in the laboratory and industrially:
By Direct Precipitation:
3MgCl2+2Na3PO4→Mg3(PO4)2↓+6NaCl
- A solution of magnesium chloride (or magnesium sulfate) is mixed with disodium phosphate or trisodium phosphate.
- The insoluble magnesium phosphate precipitates out as a white solid, which is then filtered, washed, and dried.
From Magnesium Oxide and Phosphoric Acid:
3MgO+2H3PO4→Mg3(PO4)2+3H2O
- Magnesium oxide reacts with phosphoric acid, forming magnesium phosphate and water.
- This method produces a purer compound suitable for laboratory and pharmaceutical use.
From Magnesium Hydroxide and Phosphoric Acid:
3Mg(OH)2+2H3PO4→Mg3(PO4)2+6H2O
- This is a neutralization reaction between a base (magnesium hydroxide) and an acid (phosphoric acid).
Biological Formation:
In living organisms, magnesium phosphate can form naturally in bones and teeth, as magnesium ions combine with phosphate ions under biological conditions.
Uses of Magnesium Phosphate (Mg₃(PO₄)₂)
- Nutritional Supplements:
Used in vitamin and mineral supplements to provide both magnesium and phosphorus, essential minerals for bone health, muscle function, and energy metabolism. - Bone and Tooth Health:
Plays a role in bone and dental formulations, as it mimics the natural composition of bones and teeth, often used in calcium-magnesium-phosphate complexes. - Laboratory Reagent:
Employed as a chemical reagent and buffering agent in laboratory experiments involving phosphate chemistry and pH control. - Food Additive:
Used as a food additive (E343) in processed foods to regulate acidity, stabilize texture, and act as a leavening agent in baking powders. - Pharmaceutical Applications:
Included in antacid preparations to neutralize excess stomach acid, and sometimes used as an inactive ingredient (excipient) in tablet formulations. - Fertilizers:
Utilized in phosphate-based fertilizers to enrich soils with phosphorus and magnesium—nutrients vital for healthy plant growth and chlorophyll production. - Water Treatment:
Helps in water softening and corrosion prevention in water treatment systems by binding metal ions and forming protective coatings inside pipes. - Dental and Bone Repair Materials:
Used in bioceramics and bone cement formulations, where magnesium phosphate cements serve as fast-setting, biocompatible materials for orthopedic and dental repairs. - Flame Retardant and Coating Material:
Applied in some industrial coatings and flame-retardant materials due to its thermal stability and non-toxic nature. - Animal Feed Supplement:
Added to livestock and poultry feed as a mineral source, promoting stronger bones, improved metabolism, and better growth in animals.
